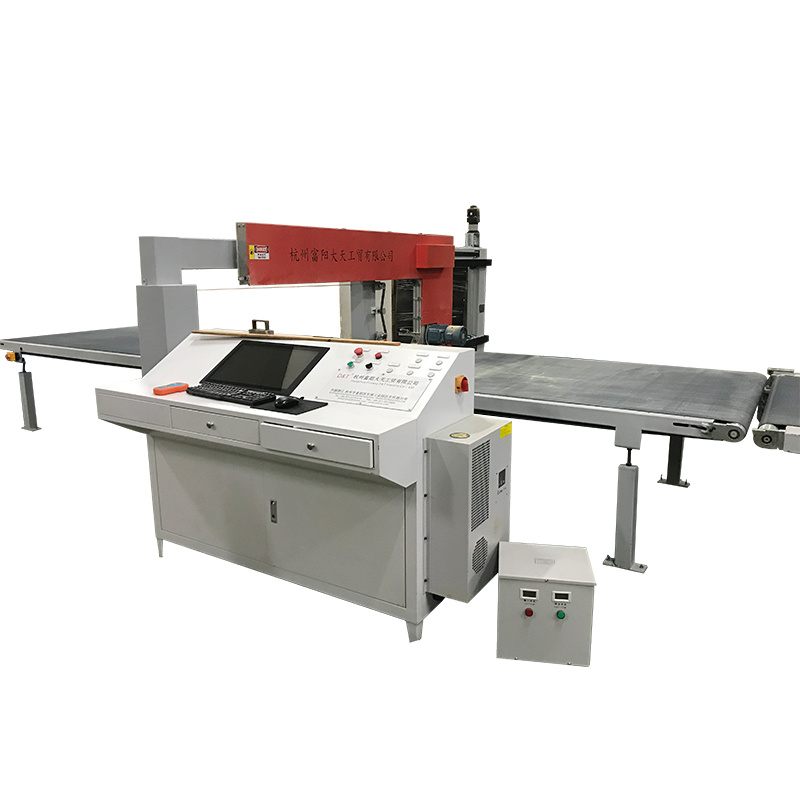

Automatic CNC Fast Wire Automatic Cutting Machinery Good Fast EVA Rubber Sheet Cutting Machine

没有此类产品
Page view
Description

Main Technical Specification
Type DTC-FL1305 DTC-FV2012
Max. Product Size L3000*W1300*H500mm L2000*W1200*H1200mm
Cutting Wire 0.8-2mm 0.8-2mm
Control System Industrial Computer+Window XP Industrial Computer+Window XP
Software D&T Profiler D&T Profiler
Cutting Speed 0~6m/min 0~6m/min
Precision ±0.5mm ±0.5mm
Power ~6.5kw ~4.5kw
Overall Weight 2200kg 1500kg
Overall Dimension 6200*2400*2380mm 4000*2700*2500mm

Suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.

Cutting line: Abrasive steel wire

Specification:
1.It is advanced and fully automatic computerized foam contour cutting machine.
2.Can cut foam into any 2D complex shape.
3.Easy control

This foam cutting machine is most advanced and fully automatic computerized foam contour cutting machine, which can cut the various shape by computerized system.
1.This eva foam contour cutting machine is operated by computer and use CAD software to design the shape for the foam block. Make full use of the foam blocks and extremely save the raw material (foam blocks) cost.
2. Besides CAD software, we also design another drawing software by our engineers which is very easy to use. Operators only need to go through simple computer literacy training.
3.Equipped with high precision servo mechanism system; Rapid cutting speed and accurate cutting; whichenhance the working efficiency.
5. 85% of dust will be collected to the bag during cutting process and low noise.
6. Operating system: Windows XP
7. Designing software: Auto CAD / Self-developed CNC operation Software.
8. Cutting software: D&T Profile software.
Application:
CNC Fast Wire Contour Cutter is specifically developed for special heat insulation materials used in the construction industry, and it can be used in slicing and modeling processing for various types of high density foam.
It is the most ideal equipment in building, indoor decoration, advertising, toys model industry, aerospace industry model, furniture manufacturing and packaging areas. The control system is self-development, worry-free service, To make your most wanted tailor-made production equipment, is the goal we are after.
